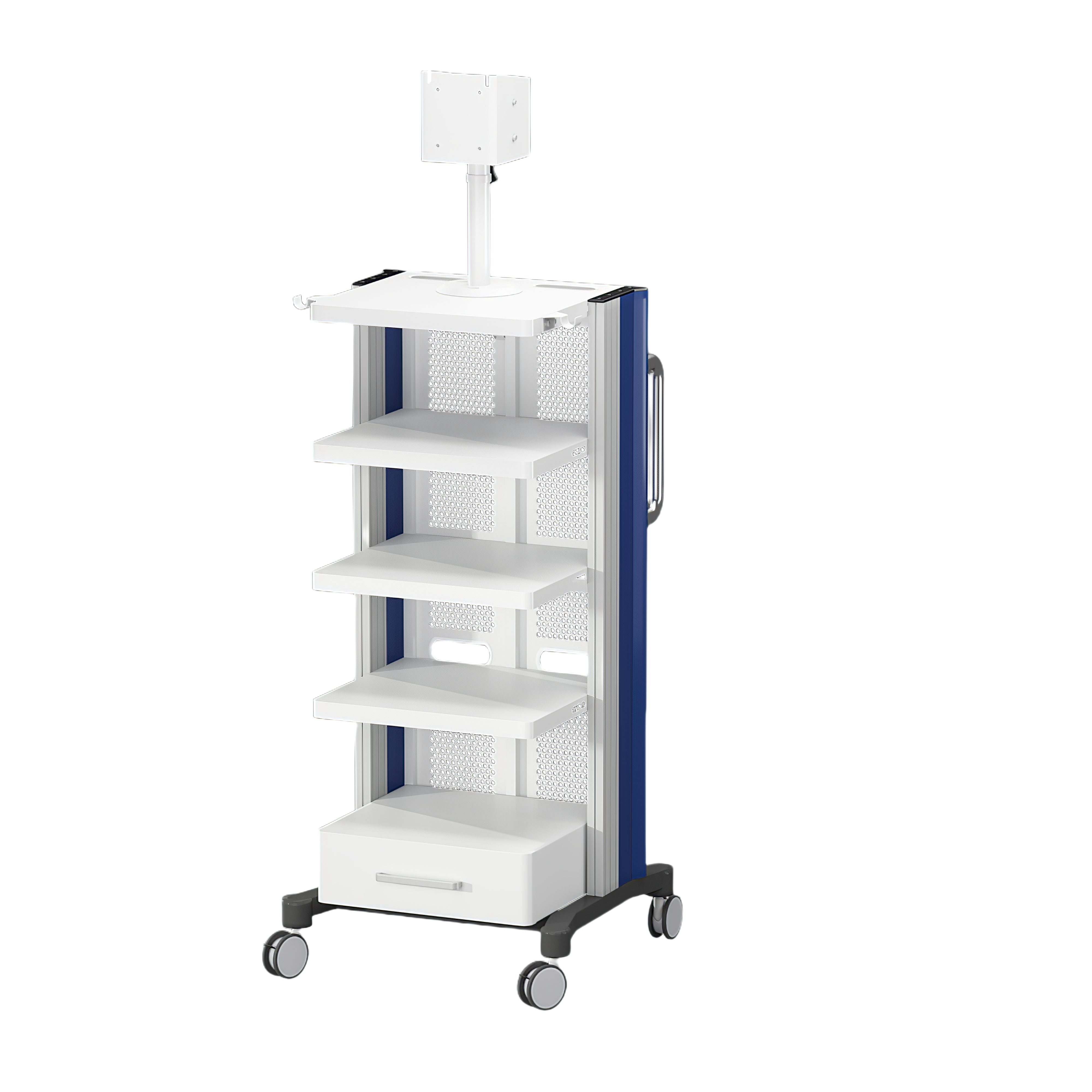

AR-3021Endoscope Cart
Product Specifications
|
Product Description |
Endoscope Cart |
|
Height |
1300±5mm |
|
Height from monitor arm center to floor |
1600±5mm |
|
Top table |
W490mm*D510mm |
|
2nd-4th table |
W490mm*D430mm |
|
Table thickness |
30mm |
|
Drawer |
W490mm*D400mm*H120mm |
|
Caster |
4 ″ |
|
Load capacity per single table surface |
30kg |
|
Drawer load capacity |
7kg |
|
Monitor arm (optional) load capacity |
15kg |
|
Monitor mounting interface |
VESA 100*100mm， 75*75mm |
|
Probe holder bracket (optional) load capacity |
3kg |
|
Packaging dimensions |
L1280* W760* H680mm |
|
Cart gross weight |
51.5±5kg |
|
Cart net weight |
56.5±5kg |
Environmental Specifications
|
Temperature range |
Operating state |
0℃~+40℃ |
|
Non-operating (storage) state |
-40ºC~+70ºC |
|
|
Relative humidity range |
Operating state |
15% - 95 %，Condensation-free |
|
Non-operating (storage) state |
10% - 95 %，Condensation-free |
|
|
Altitude range |
Operating state |
-500 ~ +4,600 m (57.0kPa～106.0kPa) |
|
Non-operating (storage) state |
-500 ~ +4,600 m (57.0kPa～106.0kPa) |
|
Temperature range |
Operating state |
0℃~+40℃ |
|
Non-operating (storage) state |
-40ºC~+70ºC |
|
|
Relative humidity range |
Operating state |
15% - 95 %，Condensation-free |
|
Non-operating (storage) state |
10% - 95 %，Condensation-free |
|
|
Altitude range |
Operating state |
-500 ~ +4,600 m (57.0kPa～106.0kPa) |
|
Non-operating (storage) state |
-500 ~ +4,600 m (57.0kPa～106.0kPa) |
